Jenny Special Portable Air Compressors

You are here: Home > Jenny Portable Compressors > Jenny Special Portable Air Compressors


Download and Print Jenny Special Portable Air Compressor Literature



Standard Features
  • Heavy-duty single or two stage cast iron compressor pump Made in Somerset, PA USA
  • Splash lubricated
  • Belt driven with a large flywheel for extra cooling and easier start-up
  • Finned intercooler (two stage only)
  • Centrifugal unloader (two stage only)
  • Each unit is filled with Jenny Ultimate Blue Synthetic Compressor Pump Oil
  • Totally enclosed heavy-duty beltguard
  • Directional air shroud for reduced pump temperatures
  • Powder coated ASME certified receivers
  • Protectively mounted fittings
  • Manual tank drain(s)
  • Large canister intake filter with replaceable filter elements
  • All tanks are powder coated and ASME certified
  • High quality special unloading valves to assist in engine starting
  • Stainless steel braided discharge hose
  • Tank gauge
  • Regulator and outlet pressure gauge
  • Pressure relief safety valve
  • Constant run control
  • Single stage set at 105 – 125 PSI Two stage set at 145 – 175 PSI
  • Pneumatic throttle idle control
  • Honda GX Series OHV Engine
  • Designed, tested and proven to meet the demands of the construction and rental industry

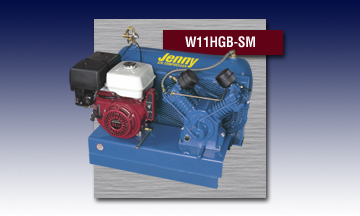

Jenny Special Portable Air Compressor - Model W11HGB-SM

Skid Mount
Single Stage
Model
Pump
HP
Tank
Gallon
Drive
CFM @
100 PSI
CFM @
125 PSI
GC8HGA-SM
GC
8
30
Recoil
16.4
16.0
J11HGA-SM
J
11
Electric
21.3
20.9

Skid Mount
Two Stage
Model
Pump
HP
Tank
Gallon
Drive
CFM @
100 PSI
CFM @
175 PSI
W11HGB-SM
W
11
30
Electric
Start
21.0
17.6
U18HGB-SM
U
18
41.0
34.7

Trailer
Two Stage
Model
Pump
HP
Tank
Gallon
Drive
CFM @
100 PSI
CFM @
175 PSI
W11HGB-PT
W
11
30
Electric
Start
21.0
17.6
U18HGB-PT
U
18
41.0
34.7

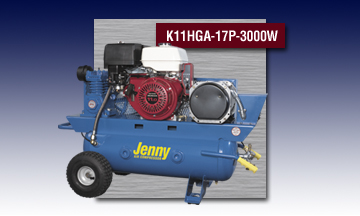

Jenny Special Portable Air Compressor - Model K11HGA-17P-3000W
Compressor/Generator
Single Stage Gas Drive –3000 Watt 115V/230V Generator
Model
Pump
HP
Tank
Gallon
Drive
CFM @
100 PSI
CFM @
125 PSI
K11HGA-17P-3000W
K
11
17
Electric
Start
8.9
8.6
G13HGA-17P-3000W
G
13
16.2
15.6

Options

  • Oil sight glass
  • Air line filter
  • Lubricator
  • Electric start
  • Other engine options available upon request
  • Other pressures available upon request
